Wedge Wire With High Strength and Filtering Efficiency, Is a Good Choice for Screening Industry.

Wedge wire screen is made of stainless steel wire by wrapping "V" shaped profile wire around longitudinal support rods. All the wires and rods are resistance welded at each contact point to form a wedge wire cylinder and then make it into a sieve panel after cleaning, cooling, cutting, flattening and trimming.

Wedge wire, also called wedge wire screen, Wedge wire products include wedge wire nozzle, cylinder, support grid and lateral assemblies. The size of the pores on the one side is smaller than the pores on the other side, so the wedge wire can greatly filter something from the small pore side to the large pore side without clogging. Featured by high mechanical strength and filtering efficiency, it is popular for filtering and screening, and widely used in mining, coal, petroleum, fertilizer, grain and environmental protection industries.

Wedge screen panels and wedge screen cylinder

Feature

Flat surface.
Excellent filtering performance.
Accurate distance between supporting profile.
Welded production process for solid and strong structure.
Minimum clogging.
Maximum flow rates.
Good mechanical properties.
High strength.
High load capacity.
Corrosion and rust resistance.
Temperature resistance.
Chemical stability.

Specification

Material: stainless steel, hastelloy steel, nickle alloy steel or other alloy steel.
Filter profile: triangle wire.
Support profile: rectangular bar, triangle wire, round bar, trapezoid wire.

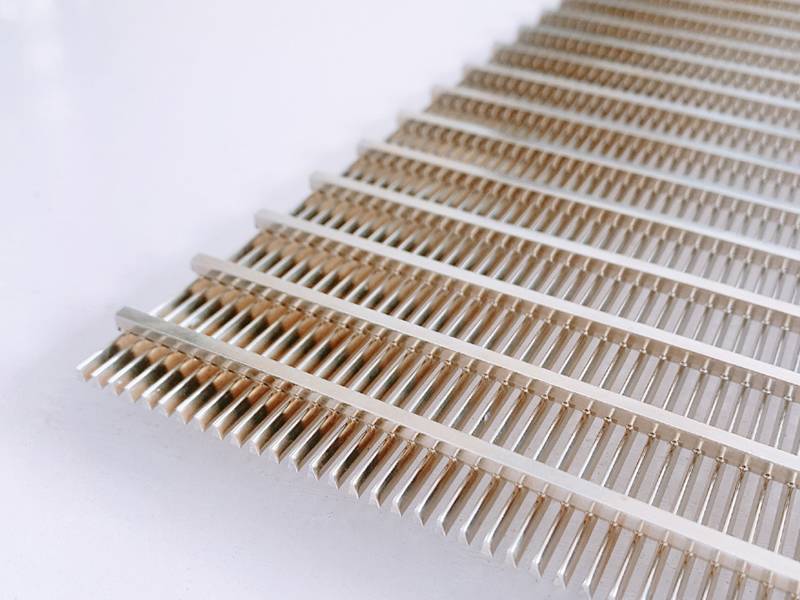

Rectangular Bar Support Profile

Triangle Wire Support Profile

Round Bar Support Profile

Trapezoid Wire Support Profile
Slot size: 0.05 mm - 10 mm.
Pitch: 10 mm - 35 mm.
Panel width: 500 mm - 2000 mm.
Panel length: 500 mm - 3000 mm.

Application

Wedge wire screen panels have a wide range of applications, the main applications are sieving and filtration. It can also be used as decorative materials in some buildings. The detailed application fields are as follows: vibrating screen decking, surface water intake screens, fish diversion screen panels, hatchery screens, grain drying screen, malt kin or germination floors, decorative materials and other applications.
