High-tensile Woven Vibrating Screen Mesh for Mining

Woven vibrating screen mesh is one of the most widely used mining screens in the aggregate and mining industries for primary sieving and sorting. It is usually made of carbon steel and stainless steel and manufactured in different geometries with different weaving styles. Typically, the screen mesh has high mechanical strength, precise screening capability and large carrying capacity. In addition, it can withstand high abrasion, tension and impact.

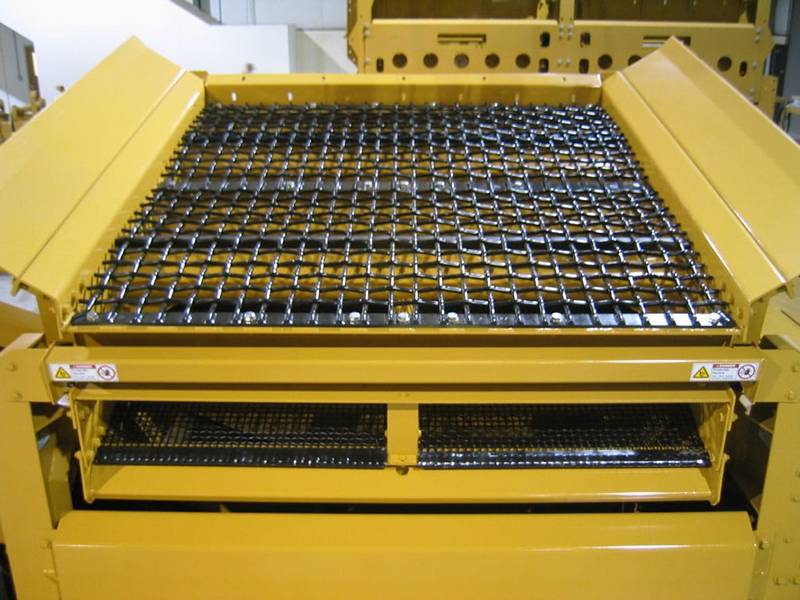

Stainless steel woven vibrating screen mesh

Feature

High bearing capacity, high strength.
Shock and pull resistant.
Large Open Area.
Reduce the plugging.
Wear, temperature and weather resistance.
Acid, alkali and corrosion resistant.
Long service life.

Specification

Material: High tensile spring steel, manganese steel and stainless steel.
Wire diameter: 0.71 mm - 12.5 mm.
Opening size: 1 mm - 100 mm.
Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
Mesh type: Square, rectangular slot, long slot.
Surface treatment: Black or red color painted.
Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
Hook type: C or U hook for 30° - 180°.

Application

Woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.
