Tantalum Wire Mesh Is Ideal for Electronic Engineering and Heat Treatment

Tantalum woven wire mesh, also called tantalum mesh, tantalum screen, is a rare metal mesh, its melting point & density between tungsten wire mesh and molybdenum wire mesh.

Tantalum wire mesh is made of tantalum. Tantalum is a sensible choice whenever high corrosion resistance is required. Even though tantalum is not one of the noble metals, it is comparable to them in terms of chemical resistance. In addition, tantalum is very easy to work at well below room temperature despite its body-centered cubic crystal structure. This makes it a valuable material in a large number of chemical applications. It is processed into tantalum wire mesh, which is widely used in chemical liquid filter, vacuum furnace grate, electronic component and other applications.

Beside these, tantalum wire has excellent ductility can adapt different mounting conditions. And it has a melting point of 2996°C, ranking third in refractory metals. So it is also ideal for electronic engineering and heat treatment.

Specification

Material: tantalum wire, tantalum alloy wire.
Wire diameter: 0.01–4.87 mm.
Mesh: 2-150 mesh.
Roll Width: 0.3–2 m.
Roll length: 10–100 m.
Density: 16.69 g/cm³.
Melting point: 2996°C.
Boiling point: 5458°C.
Weaving type
- Knitted
- Expanded
- Perforated
- Woven: plain weave and twill weave, dutch weave.
Packaging Details: packed in roll, wrapped with moister-proof paper, put into wooden cases, or according to your requirements.

Chemical Composition of Tantalum (%)
C	Cb	Fe	H	Mo	N	Ni	O	Si	Ta	Ti	W
0.01	0.05	0.01	0.001	0.01	0.01	0.01	0.02	0.005	Rem.	0.01	0.03

Tantalum Wire Mesh Technical Data
Item	Mesh	Wire Diameter		Opening
Item	inch	mm	inch	mm
TaWM-01	2 mesh	1.8	0.071	10.9
TaWM-02	3 mesh	1.6	0.063	6.866
TaWM-03	4 mesh	1.2	0.047	5.15
TaWM-04	5 mesh	0.91	0.036	4.17
TaWM-05	6 mesh	0.711	0.028	3.522
TaWM-06	8 mesh	0.61	0.024	2.565
TaWM-07	10 mesh	0.508	0.02	2.032
TaWM-08	12 mesh	0.457	0.018	1.66
TaWM-09	14 mesh	0.417	0.016	1.397
TaWM-10	16 mesh	0.345	0.014	1.243
TaWM-11	18 mesh	0.315	0.012	1.096
TaWM-12	20 mesh	0.315	0.0124	0.955
TaWM-13	22 mesh	0.315	0.0124	0.84
TaWM-14	24 mesh	0.315	0.0124	0.743
TaWM-15	26 mesh	0.295	0.0116	0.682
TaWM-16	28 mesh	0.295	0.0116	0.612
TaWM-17	30 mesh	0.274	0.011	0.573
TaWM-18	32 mesh	0.254	0.01	0.54
TaWM-19	34 mesh	0.234	0.0092	0.513
TaWM-20	36 mesh	0.234	0.0092	0.472
TaWM-21	38 mesh	0.213	0.0084	0.455
TaWM-22	40 mesh	0.193	0.0076	0.442
TaWM-23	42 mesh	0.193	0.0076	0.412
TaWM-24	44 mesh	0.173	0.0068	0.404
TaWM-25	46 mesh	0.173	0.0068	0.379
TaWM-26	48 mesh	0.173	0.0068	0.356
TaWM-27	50 mesh	0.173	0.0068	0.335
TaWM-28	60 × 50 mesh	0.193	0.0076	-
TaWM-29	60 × 50 mesh	0.173	0.0068	-
TaWM-30	60 mesh	0.173	0.0068	0.25
TaWM-31	70 mesh	0.132	0.0052	0.231
TaWM-32	80 mesh	0.122	0.0048	0.196
TaWM-33	90 mesh	0.112	0.0044	0.17
TaWM-34	100 mesh	0.012	0.004	0.152
TaWM-35	120 × 108 mesh	0.091	0.0036	-
TaWM-36	120 mesh	0.081	0.0032	0.131
TaWM-37	140 mesh	0.061	0.0024	0.12
TaWM-38	150 mesh	0.061	0.0024	0.108

Application

Tantalum mesh is widely used in such various fields, e.g. electro-vacuum industry, heat treatment, chemical, electronic industry, medical, water treatment, temperature halogen and other industries. It is mainly usage for as a substitute for platinum, chemical liquid filter, gas-liquid filter, heater support mesh, electronic instrument electrode, electric vacuum components, stitch injured tissue, sieving screen other special purpose.

Tantalum wire mesh sensors are imaging instruments for the analysis of gas-liquid and liquid-liquid multiphase flows.

For Wire Mesh Sensor

For Heating Element

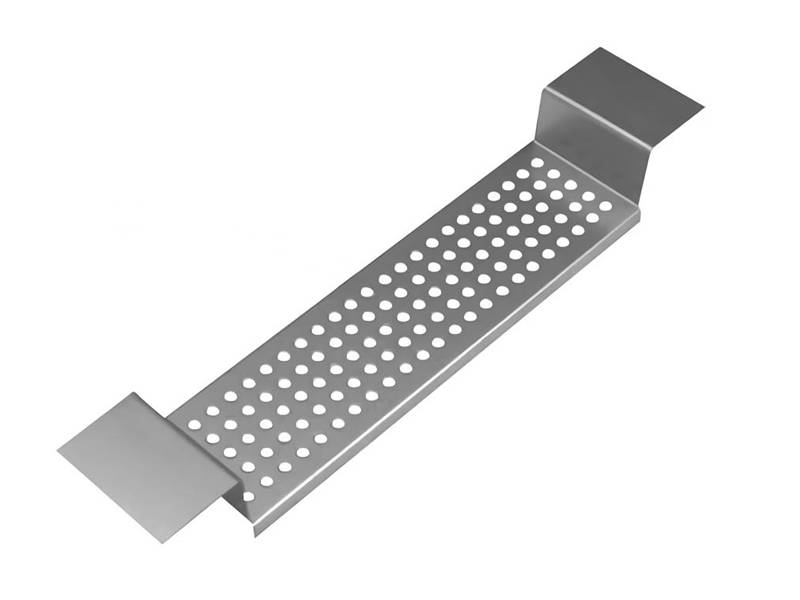

Tantalum perforated metal mesh for boat heaters

For Tantalum Boats Vacuum Evaporation Sources

Two double layer tantalum mesh filter discs

For Filter Discs

Two tantalum expanded metal mesh electrode

For Electrode
