A Greater Sense of Security Option, Concertina Wire Coil Is the Most Defensive Barrier for Multiple Purposes.

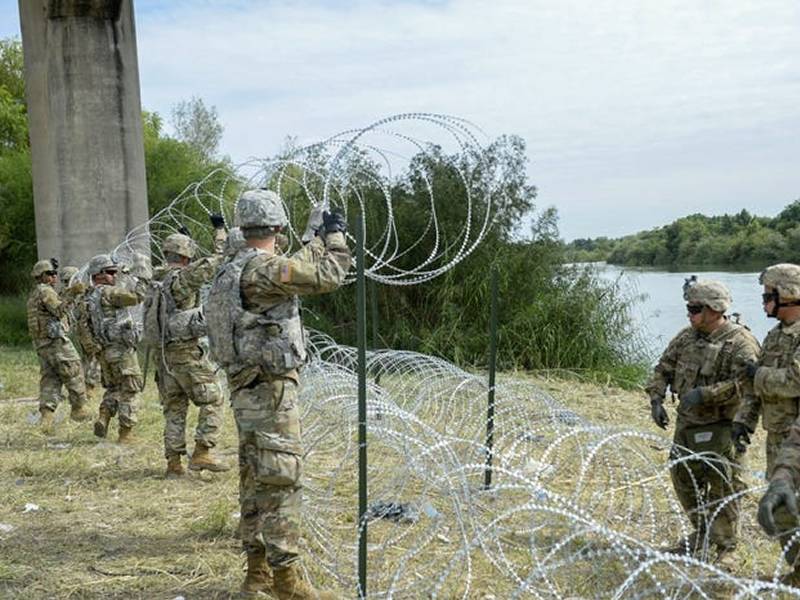

Concertina wire is a type of razor wire, also commonly called concertina wire coil. Hexagonal barbed wire is produced by connecting adjacent helical coil loops to each other at designated points on the circumference to form an accordion-like structure. In this way, there is no gap large enough for people to squeeze through. It provides unmatched security and is widely used in applications such as border barriers and military bases.

The heavy-duty clips that hold the razor wire into its shape are a unique feature of concertina wire products, these clips are made of galvanized steel, are weather and water resistant, and are very effective and durable. This heavy-duty clip cannot be separated by hand or ordinary tools. So concertina wire is called high security blade razor wire.

Concertina wire Install on anti-climb fence

Feature

  • High security blade razor wire with heavy-duty clips.
  • Galvanized steel or stainless steel construction for corrosion resistant.
  • The mesh body has good rigidity and can be installed with sensing devices.
  • Visual and psychological deterrent to unauthorized persons.
  • Clipped form increases time for breaking in.
  • Multiple blade specs for choice.
  • No maintenance cost.

Specification

  • Blade Type: BTO-10, BTO-12, BTO-18, BTO-22, BTO-28, BTO-30, CBT-60, CBT-65.
Concertina razor wire coil specification
Diameter (mm) Spiral turns per coil Clips per coil Recommended stretch length (m)
300 33 3 4
450 54 3 8 - 10
610 54 3 10 – 12
730 54 3 15 – 20
730 54 5 10 – 12
900 56 5 13 - 15
980 54 5 10 – 15
980 54 7 5 – 8
1250 54 7 4 – 6
1500 54 9 4 – 6
Remarks: Special specifications can be customized.

Application

Concertina razor wire is used for perimeter protection in sensitive or high security locations.
