Polyester Spiral Mesh Belts for Dewatering, Drying, Forming

Polyester spiral mesh belt commonly known as the spiral mesh dryer belt, it has a specially designed spiral structure. The spiral meshes are produced from flat ribbon spirals, which are connected to a straight round rod. Due to the special structure of the polyester spiral mesh belt with continuous and seamless screen spiral, it is very suitable for applications with high mechanical load and unmeet the seam.

Meanwhile, the unique spiral linked weave type makes the polyester spiral mesh belts flexible in warpage, and the heat-setting treatment ensures the spiral belts durability and a long, productive life without deformation, easy to install, clean and maintains.

polyester spiral mesh dryer belt of different colors

Specification

Material: polyester wire.
Color: red, blue, black, white.
Wire diameter: 0.5 mm- 1.2 mm.
Thickness: 2.1 mm - 4.3 mm
Width: 10 cm - 10 m.
Length: It can be customized.

Specifications of Polyester Spiral Mesh Belt
Type	Spiral loop width (mm)	Filament diameter (mm)			Strength (N/cm)	Weight (Kg/m²)	Thickness (mm)	Air permeability (m³/m² h)	CFM (127/pa)
Type	Spiral loop width (mm)	Spiral ring monofilament	Connection wire	filler material monofilament	Strength (N/cm)	Weight (Kg/m²)	Thickness (mm)	Air permeability (m³/m² h)	CFM (127/pa)
Small loop 5080A1	5.2	0.5	0.8	0.60 × 3	1800	1.5	2.1	4480	280
Medium loop 6890A1	8	0.68	0.9	0.80 × 4	2000	2	2.45	6080	380
Medium loop 6890B1	7.15	0.68	0.9	0.90 × 3	2000	1.9	2.45	5760	360
Medium loop 6890B2	7.15	0.68	0.9	0.80 × 3	2000	1.85	2.45	7750	484
Medium loop 6890B3	7.15	0.68	0.9	Flat Wire 2.1 × 0.80	2000	1.8	2.45	9000	563
Medium loop 6890B4	7.15	0.68	0.9	Flat Wire 2.1 × 0.88	2000	1.85	2.45	8000	500
Medium loop 6890B5	7.15	0.68	0.9	Conductive carbon wire	2000	1.6	2.45	10000	625
Large loop 9090A1	8	0.9	0.9	0.90 × 3	2300	2.3	3.03	7500	468
Large loop 90110A1	10	0.9	1.1	1.0 × 4	2000	2.4	3.15	6240	390
Alkali resistance PA90110A2	10	0.9	1.1	1.2 × 3	2000	2.25	3.15	6240	390
Large loop 10090A1	8	1	0.9	1.0 × 3	2000	2.5	3.6	5000	315
Large loop 120130A1	1.2	1.2	1.3	1.2 × 3	2600	2.85	4.3	7500	468

Application

Polyester spiral mesh belts are widely used as filter belts, dryer screen belts or conveyor belts in dewatering processes with fibrous products, or for industry sludge dewatering and drying, nonwoven forming, and thermal applications include drying of veneers, manufacture of gypsum plasterboard or for multi-stage dryers in the foodstuff processing etc.

For Tea Drying

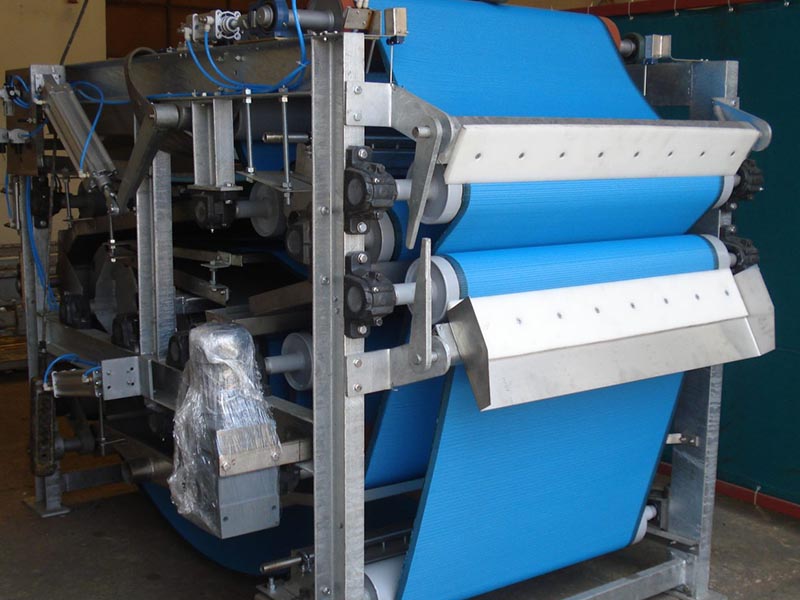

For Belt Press

For Potato Starch Machine

For Sludge Drwatering
