Standard Expanded Metal
Flattened expanded metal is what results when standard expanded metal is put through a cold rolling steel mill to flatten the expanded metal out. During the rolling process, the expanded metal becomes thinner and longer. As a result, flattened expanded metal his flatter and lighter. In actual applications, flattened expanded metal is mostly used in applications requiring lightweight, flexible expanded metal that offers certain strength and durability, such as shelves, window guards, greenhouse benches and dry safety walls.
Our flattened expanded metal products come in a variety of high quality metal materials, hole patterns and mesh openings to ensure they are perfectly suited to different industrial applications.
Style | Minimum Thickness (inches)A | Nominal Weight in lbs./100 Sq. Ft.B |
Design Size (inches)C | Opening Size (inches)C | Strand Size (inches) | Overall Thickness (inches) | Open Area | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
SWD | LWD | SWO | LWO | Width | Thickness | |||||||
¼"-#20 | 0.026 | 74 | 0.250 | 1.05 | 0.092 | 0.715 | 0.079 | 0.029 | 0.029 | 37% | ||
¼"-#18 | 0.034 | 100 | 0.250 | 1.05 | 0.090 | 0.715 | 0.080 | 0.038 | 0.038 | 36% | ||
½"-#20 | 0.026 | 37 | 0.500 | 1.26 | 0.342 | 1.000 | 0.079 | 0.029 | 0.029 | 68% | ||
½"-#18 | 0.034 | 61 | 0.500 | 1.26 | 0.306 | 1.000 | 0.097 | 0.038 | 0.038 | 61% | ||
½"-#16 | 0.043 | 77 | 0.500 | 1.26 | 0.304 | 1.000 | 0.098 | 0.048 | 0.048 | 61% | ||
½"-#13 | 0.066 | 126 | 0.500 | 1.26 | 0.286 | 1.000 | 0.107 | 0.072 | 0.072 | 57% | ||
¾"-#16 | 0.043 | 47 | 0.923 | 2.10 | 0.701 | 1.750 | 0.111 | 0.048 | 0.048 | 76% | ||
¾"-#14 | 0.054 | 56 | 0.923 | 2.10 | 0.713 | 1.760 | 0.105 | 0.060 | 0.060 | 77% | ||
¾"-#13 | 0.066 | 67 | 0.923 | 2.10 | 0.711 | 1.781 | 0.106 | 0.072 | 0.072 | 67% | ||
¾"-#10 | 0.066 | 102 | 0.923 | 2.10 | 0.603 | 1.755 | 0.160 | 0.072 | 0.072 | 65% | ||
¾"-#9 | 0.101 | 157 | 0.923 | 2.10 | 0.593 | 1.688 | 0.165 | 0.108 | 0.108 | 64% | ||
1"-#16 | 0.043 | 38 | 1.000 | 2.52 | 0.804 | 2.250 | 0.098 | 0.048 | 0.048 | 80% | ||
1½"-#16 | 0.043 | 35 | 1.330 | 3.15 | 1.092 | 2.750 | 0.119 | 0.048 | 0.048 | 82% | ||
1½"-#14 | 0.054 | 43 | 1.330 | 3.15 | 1.098 | 2.750 | 0.116 | 0.060 | 0.060 | 83% | ||
1½"-#13 | 0.066 | 51 | 1.330 | 3.15 | 1.098 | 2.750 | 0.116 | 0.072 | 0.072 | 83% | ||
1½"-#9 | 0.101 | 105 | 1.330 | 3.15 | 1.014 | 2.563 | 0.158 | 0.108 | 0.108 | 76% | ||
A The minimum thickness is absolute, not subject to minus variation. B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. C A tolerance of ±10 % is permitted in dimensions, center to center. |
Style | Minimum Thickness (inches)A | Nominal Weight in lbs./100 Sq. Ft.B |
Design Size (inches)C | Opening Size (inches)C | Strand Size (inches) | Overall Thickness (inches) | Open Area | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
SWD | LWD | SWO | LWO | Width | Thickness | |||||||
½"-#18 | 0.037 | 66 | 0.500 | 1.26 | 0.304 | 1.000 | 0.098 | 0.041 | 0.041 | 61% | ||
½"-#16 | 0.047 | 84 | 0.500 | 1.26 | 0.302 | 1.000 | 0.099 | 0.051 | 0.051 | 60% | ||
½"-#13 | 0.072 | 136 | 0.500 | 1.26 | 0.236 | 0.915 | 0.107 | 0.076 | 0.076 | 57% | ||
¾"-#18 | 0.037 | 43 | 0.923 | 2.10 | 0.687 | 1.812 | 0.118 | 0.041 | 0.041 | 74% | ||
¾"-#16 | 0.047 | 54 | 0.923 | 2.10 | 0.687 | 1.812 | 0.118 | 0.051 | 0.051 | 74% | ||
¾"-#13 | 0.072 | 83 | 0.923 | 2.10 | 0.683 | 1.750 | 0.120 | 0.076 | 0.076 | 74% | ||
¾"-#9 | 0.108 | 185 | 0.923 | 2.10 | 0.593 | 1.687 | 0.179 | 0.114 | 0.114 | 61% | ||
1½"-#16 | 0.047 | 41 | 1.33 | 3.15 | 1.074 | 2.750 | 0.128 | 0.051 | 0.051 | 81% | ||
1½"-#13 | 0.072 | 62 | 1.33 | 3.15 | 1.070 | 2.625 | 0.130 | 0.076 | 0.076 | 80% | ||
1½"-#9 | 0.108 | 124 | 1.33 | 3.15 | 0.960 | 2.625 | 0.174 | 0.114 | 0.114 | 74% | ||
A The minimum thickness is absolute, not subject to minus variation. B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. C A tolerance of ±10% is permitted in dimensions, center to center. |
Style | Minimum Thickness (inches)A | Nominal Weight in lbs./100 Sq. Ft.B |
Design Size (inches)C | Opening Size (inches)C | Strand Size (inches) | Overall Thickness (inches) | Open Area | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
SWD | LWD | SWO | LWO | Width | Thickness | |||||||
½"-.050 | 0.034 | 22 | 0.500 | 1.26 | 0.292 | 1.000 | 0.104 | 0.038 | 0.038 | 58% | ||
½"-.080 | 0.056 | 55 | 0.500 | 1.26 | 0.290 | 1.000 | 0.105 | 0.060 | 0.060 | 58% | ||
¾"-.050 | 0.034 | 14 | 0.923 | 2.10 | 0.679 | 1.812 | 0.122 | 0.038 | 0.038 | 74% | ||
¾"-.080 (Lt) | 0.056 | 26 | 0.923 | 2.10 | 0.637 | 1.750 | 0.143 | 0.060 | 0.060 | 69% | ||
¾"-.080(HVY) | 0.056 | 33 | 0.923 | 2.10 | 0.561 | 1.750 | 0.181 | 0.060 | 0.060 | 61% | ||
¾"-.125 | 0.089 | 53 | 0.923 | 2.10 | 0.549 | 1.750 | 0.187 | 0.094 | 0.094 | 59% | ||
1½"-.080 | 0.056 | 18 | 1.33 | 3.15 | 1.044 | 2.750 | 0.143 | 0.060 | 0.060 | 78% | ||
1½"-.125 | 0.089 | 36 | 1.33 | 3.15 | 0.968 | 2.750 | 0.181 | 0.094 | 0.094 | 73% | ||
A The minimum thickness is absolute, not subject to minus variation. B A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. C A tolerance of ±10 % is permitted in dimensions, center to center. |

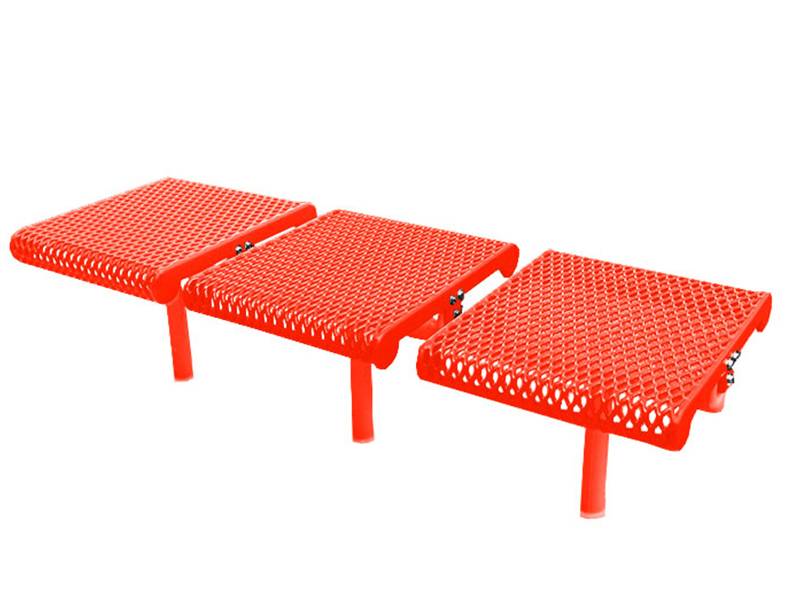

Flattened expanded metal has many applications such as fencing, shelves, furniture, protecting enclosures, exhibition stand, guards, barbecue grill, etc.
