Micro Expanded Metal Mesh – Lightweight, Flexible & Durable

Micro expanded metal is also called micro hole expanded metal mesh, mini-mesh expanded metal foil or fine mesh expanded metal. Is a small hole light-duty expanded metal produced by using precision punching and shearing machine through slitting and stretching. Finished with various optional patterns and one-piece structure.

Micro expanded metal can be made of almost all kinds of metal sheet. Except for carbon steel, aluminium, stainless steel, copper, it also can be made of nickel, titanium and other materials. It is one of the preferred materials used in building protection and reinforcement design, filter element support, batteries grid plate and small-scale electric appliance heat dissipation applications.

The details of holding a piece of micro expanded metal mesh

Feature

One-piece construction.
Versatile and attractive.
Excellent weight-to-strength ratio.
Low wind resistance.
Easy cutting and shearing.
Various styles and materials are available.
Durable and economical.
High temperature resistance and good heat dissipation capacity.
Superior sound absorption ability.
Small hole effectively prevents flies, bees and other insects from entering.

Specification

Material: carbon steel, stainless steel, copper, brass, aluminum, titanium, nickel alloy, other alloys.
Surface treatment: PVC coated, Teflon spraying, hot-dipped galvanized, electro galvanized, anodized, polished.
Hole patterns: diamond, square, round, hexagonal, triangle, fish scale.
Hole type: raised/standard, flattened.
Process: punching and shearing tensile.
Color: green, gray, blue, yellow, white, black, any color available according to customer's requirement.
Package: standard pallet with packaged into thin film, bubble film for unit inside, woven bag for unit outside, or according to your requirements.

Micro Diamond Designs-Carbon Steel-Standard
Style	Nominal Weight in lbs./100 Sq. Ft.^A	SWD	LWD	SWO	LWO	Width		Overall Thickness (inches)	Open Area
Style	Nominal Weight in lbs./100 Sq. Ft.^A	Design Size (inches)^B		Opening Size (inches)^B		Strand Size (inches)		Overall Thickness (inches)	Open Area
3/32"-#24	56	0.140	0.240	0.084	0.135	0.040	0.024	0.083	43%
1/8"-#24	52	0.150	0.300	0.094	0.155	0.040	0.024	0.083	47%
3/16"-#24	26	0.190	0.500	0.145	0.375	0.034	0.018	0.069	64%
3/16"-#24	49	0.200	0.500	0.136	0.325	0.050	0.024	0.101	50%
3/16"-#24	72	0.210	0.500	0.131	0.308	0.060	0.031	0.122	43%
1/4"-#24	51	0.250	0.670	0.180	0.473	0.050	0.031	0.104	60%
^A A variation in weight per square ft. of ±10 % is permissible, based on the weight of any sheet or bundle. ^B A tolerance of ±10 % is permitted in dimensions, center to center.

Application

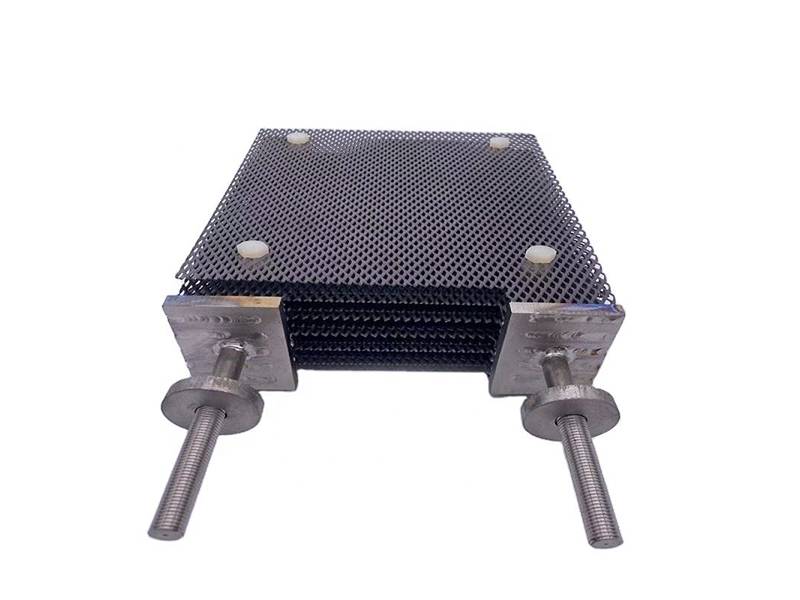

Micro expanded metal mesh is widely used in medical, automotive, battery, chemical and filtration industries. Such as filters or filter elements, EMI/RFI shielding, speaker covers, electrochemical conductors in the battery industry, noise barriers, heat insulation gaskets and oil filter components in the automotive industry.
